Using Draft Control

RXA0128369-UN-25SEP12

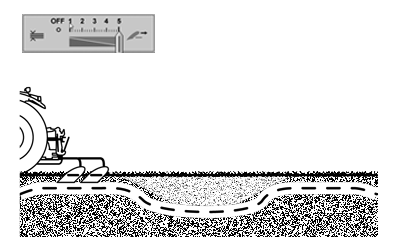

High Response Causes More Depth Variation If Soil Varies

RXA0128366-UN-30APR13

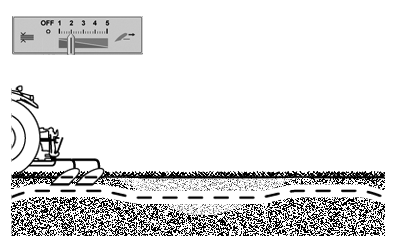

Middle Response Controls Depth Better If Soil Varies

RXA0143421-UN-08JUL14

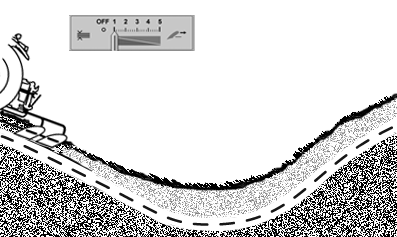

Low Response Causes More Depth Variation In Rolling Terrain

RXA0143422-UN-08JUL14

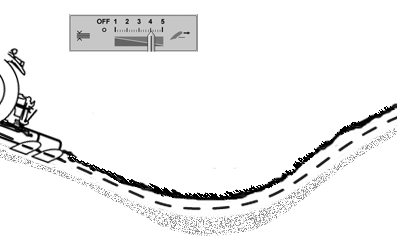

Higher Response Causes Better Depth Control In Rolling Terrain

Use draft control to help maintain operating depth of non floating tillage equipment in rolling terrain, or if tractor altitude/pitch and rear wheel sinkage force implement deeper than desired. If soil density/resistance varies, higher response setting causes more depth variation. Best setting depends on implement type and field conditions.

Higher values provide more/faster draft response. Lower values provide less/slower draft response.

Suggested Settings by Implement Type
Implement Type	Setting
Integral Field Cultivator	4—5
Integral Moldboard Plow	3—5
Semi-Integral Moldboard Plow	2—4
Integral Chisel Plow	2—4
Integral Ripper/Subsoiler	1—3

Use rear hitch control lever or load depth hitch dial to control or change operating depth. For more information, see Adjust Load Depth Control (Draft Response) in this section of this Operator’s Manual.
