Adjust Upper Limit

1.
   RXA0133710-UN-16JUL13

   Press rear hitch shortcut button on navigation bar.

---




2. Select rear hitch upper limit module.

3.
   RXA0143173-UN-01JUL14


   RXA0143175-UN-01JUL14

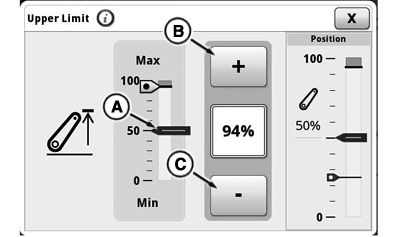

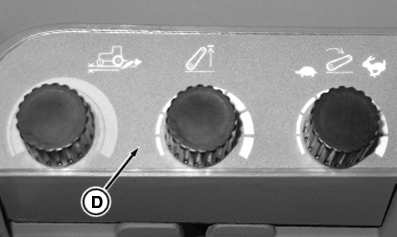

   Adjust rear hitch upper limit (A) with increase (B) and decrease (C) value buttons or rear hitch upper limit dial (D).

   Changes to upper limit are immediate.

   When the upper limit is the same as the hitch position, hitch follows upper limit.

---
