Adjust Drop Rate

Avoid physical injury or machine damage due to excessive drop speed. Fully lowering implement should take a minimum of 2 seconds.

  1. RXA0133710
    RXA0133710-UN-16JUL13

    Press rear hitch shortcut button on navigation bar.


  2. Select rear hitch drop rate module.

  3. RXA0143171
    RXA0143171-UN-01JUL14

    RXA0143174
    RXA0143174-UN-01JUL14

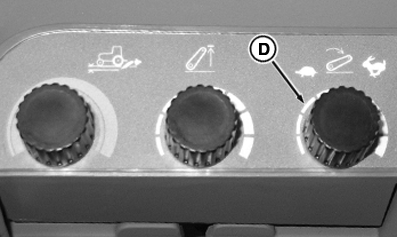

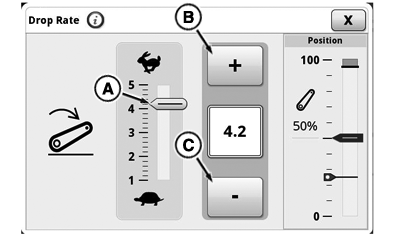

    Adjust rear hitch drop rate (A) with increase (B) and decrease (C) value buttons or rear hitch drop rate dial (D).

    Changes to drop rate are immediate.

TS36762,00001D8-19-20170901
