Monitor Bracket Mounts

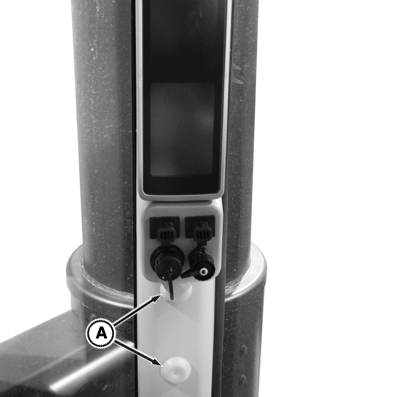

RXA0147009-UN-10MAR15

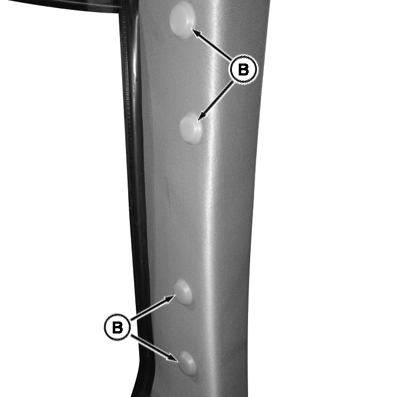

RXA0147010-UN-10MAR15

Front corner post mounting points (A) and rear corner post mounting points (B) are used to connect implement monitors to cab using M10 cap screws. See your John Deere dealer for brackets that utilize these mounting points.
