Adjust ComfortCommand™ Seat

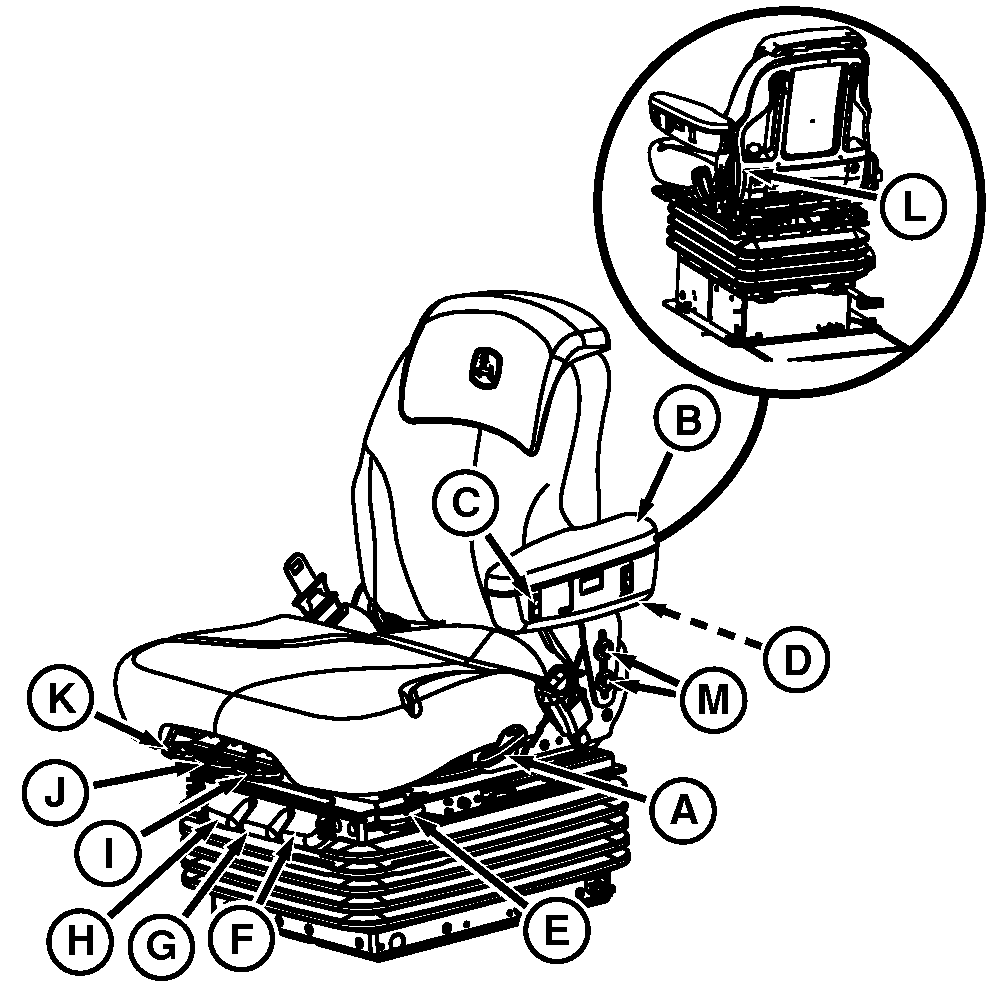

RXA0151480-UN-17FEB16

A—Backrest Tilt Handle - Allows seat back to tilt.

B—Flip Up Armrest - Can be flipped up out of the way.

C—Height Adjustment Switch - Turn key to “ON”. Press lower portion of switch to lower seat or press upper portion of switch to raise seat.

D—Armrest Tilt Adjustment Knob - Turn knob to adjust armrest angle.

E—Fore/Aft Seat Adjustment Handle - Lift up on handle, move seat forward or backward, press handle back down to lock into place.

F—Fore/Aft Isolation Handle - Adjust lever to back setting, lock into place with locking lever. Seat will absorb shock impacts while tractor is in motion. Seat won’t move farther than 25 mm (1 in) in any direction.

G—Lateral Isolation Handle - Allows side to side movement of seat. Push down on handle to unlock lateral seat suspension. Pull up on handle to lock seat in position (seat must be centered).

H—Adjustment Damper Handle - Air suspension seat only. Controls amount of bounce operator feels while driving. Can be adjusted firmer to reduce amount of bounce.

I—Cushion Height Adjustment - Pull to adjust height of cushion up or down.

J—Seat Swivel Handle - Lift on handle to allow seat to swivel. Push down on handle to lock seat in position.

K—Fore/Aft Cushion Adjustment - Pull to adjust cushion forwards or backwards.

L—Lumbar Adjustment Knob - Turn knob clockwise to add support to lower back. Turn counterclockwise to lessen resistance to lower back.

M—Arm Rest Adjustment Cap Screws - Loosen cap screws to slide arm rest up or down. Retighten cap screws.
