Manual Mirror

RXA0156208-UN-15DEC16

Right-Hand Manual Mirror

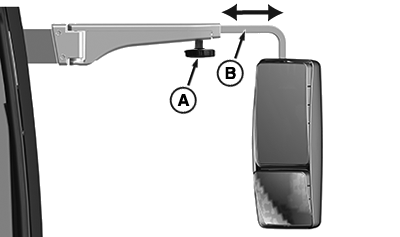

Loosen mirror arm locking knob (A) and slide mirror arm (B) to desired position. Securely tighten locking knob when adjustment is complete. Push on mirror to move surface into desired position.

After adjustment, use soft cloth to wipe any smudges off mirror face.
