Electric Mirror

RXA0156209-UN-15DEC16

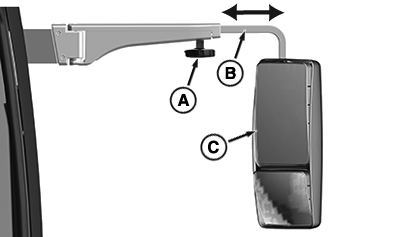

Right-Hand Electric Rear-view Mirror

1. Loosen mirror arm adjustment knob (A).

2. Slide mirror arm (B) to desired position.

3. Tighten mirror arm adjustment knob.


   RXA0142296-UN-08JUL14

---

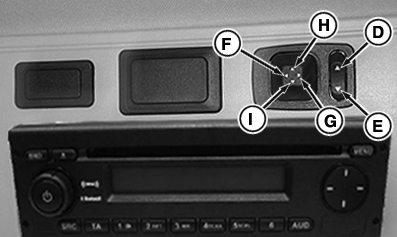

4. Select right (D) or left (E) mirror.

5. Push adjustment switch to angle mirror (C) left (F) or right (G).

6. Push adjustment switch to tilt mirror up (H) or down (I).
