Telescoping Heated Electric Mirror

  1. RXA0142300
    RXA0142300-UN-09JUN14

    RXA0156210
    RXA0156210-UN-15DEC16

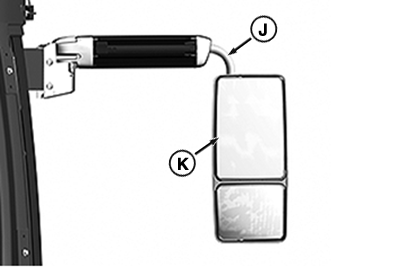

    Right-Hand Telescoping Electric Rear-view Mirror

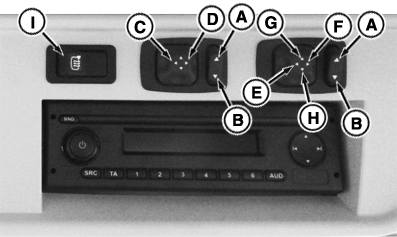

    Select right (A) or left (B) mirror (K).


  2. Push adjustment switch to extend (C) or retract (D) telescoping arm (J).

  3. Push adjustment switch to tilt mirror up (G) or down (H).

  4. Push adjustment switch to angle mirror left (E) or right (F)

Press heating switch (I) to turn mirror heating on or off. When heat is on, switch is illuminated. Heating will continue until it is switched off or key switch is turned OFF. If heating switch is not manually turned off, mirror heating will restart when key switch is turned to accessory or ON position.

TS36762,0000243-19-20170705
