Rotary Beacon Light

If Rotary Beacon light is not installed and Rotary Beacon switch is activated, a Rotary Beacon Diagnostic Trouble Code (DTC) will be generated.

RXA0156108
RXA0156108-UN-09DEC16

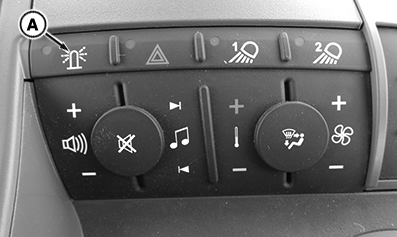

Push Rotary Beacon switch (A) to activate Rotary Beacon light.

RXA0109218
RXA0109218-UN-29JUL10

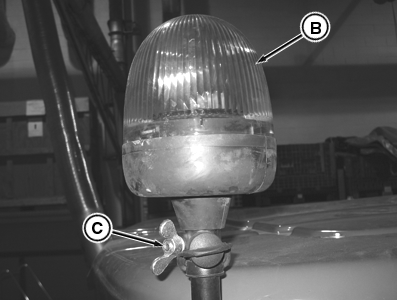

When not used for extended periods of time, remove and safely store Rotary Beacon light (B):

  1. Loosen nut (C) and remove light assembly.

  2. RXA0100494
    RXA0100494-UN-11FEB09

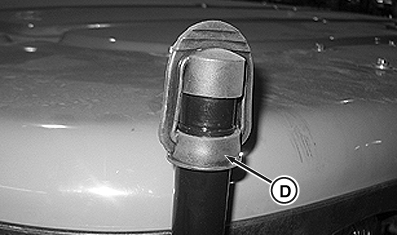

    Install rubber protective cap (D) on connector.

TS36762,0000251-19-20161212
