Auxiliary Power Strip Use

Power strip is not surge suppressor. Electrical equipment with program memory requires protection from damage of electrical surges and spikes.

RXA0099078-UN-25FEB09

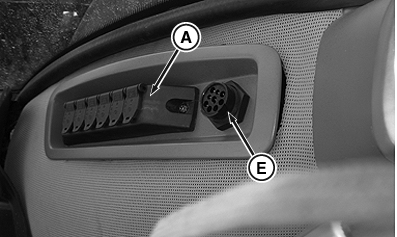

A - Auxiliary Power Strip

E - Diagnostic Connector (DEALER USE ONLY)

RXA0131998-UN-06MAY13

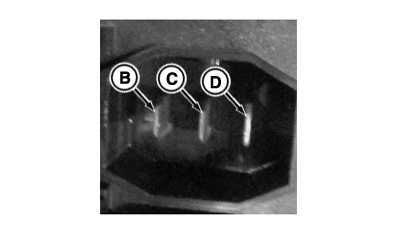

B - Battery (Unswitched)

C - Ground

D - Battery (Switched)

Power strip (A) provides six 12 volt grounded power outlets for use connecting auxiliary equipment. This power is 30 amp switched and 30 amp unswitched. Outlets are protected by a 30 amp fuse.

Various adapters are available from your John Deere dealer.

Adapters plug directly into power strip. To change to switched power on adapter, remove small tab at end of slot on plug and rotate plug 180°.
