Connect Compatible Electronic Equipment

RXA0134922
RXA0134922-UN-06SEP13

RXA0147008
RXA0147008-UN-10MAR15

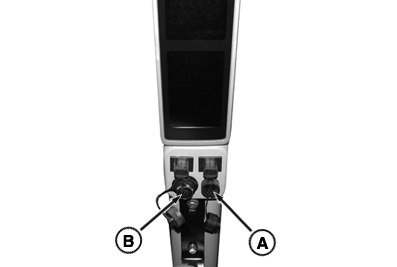

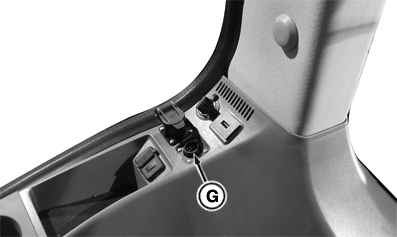

Tractor is ISOBUS ready and offer connections for implements conforming to both ISO 11786 and 11783 (G) standards. ISO 11786 connector (A) provides radar or GPS speed signal. See Configure Tractor for GPS or Radar in this section of this Operator’s Manual.

GreenStar™ corner post connector (B) allows any GreenStar™ display connection. See your John Deere dealer for compatible adapter harnesses.

Use ISO 11783 connector only with ISO 11783 compliant components. Other uses could damage tractor electronic components.

RXA0134921
RXA0134921-UN-07MAR14

RXA0134924
RXA0134924-UN-14AUG13

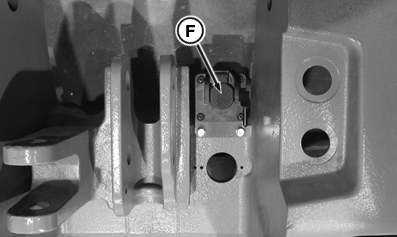

ISOBUS ready preparation includes ISO 11783 connector, on right-hand console, and implement connector (F or C) on tractor front (if equipped) or rear, facilitating tractor/implement communications.

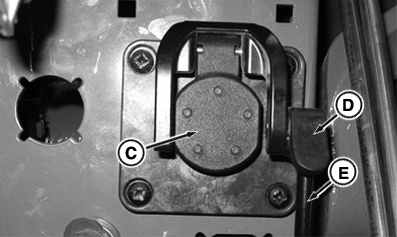

Lift handle (E) to open cover and connect implement harness. Lift the release (D) when disconnecting implement harness from connector (C) on rear of tractor.

TS36762,0000256-19-20170905
