Information Indicator

RXA0154533-UN-05OCT16

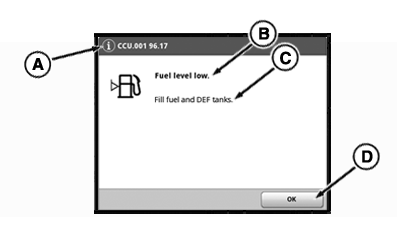

In some situations, the Information (INFO) Indicator light comes on continuously and alarm sounds for 2 seconds, indicating a fault condition. CommandCenter™ display shows diagnostic trouble code (A) and fault description including system affected (B), and suggested problem solution (C). Follow problem solution. Tractor operations can continue without damage; but, performance of some functions may be degraded.

Operating in a different manner may correct and clear an out of range condition. Some alerts can be ”acknowledged” and cleared by pressing OK button (D). If condition still exists after following solution or pressing OK button, alert may reappear later.

If situation cannot be corrected, see your John Deere dealer.
