Access Diagnostic Trouble Codes

If problem is not resolved after cycling power to tractor, or following solution on CommandCenter™ page, see your John Deere dealer.

Not all active DTC’s are displayed. Follow steps to retrieve stored DTC’s.

1.
   RXA0133360-UN-26JUL13

   Select Menu.

---




2. Select System tab.

3. Diagnostics Center icon

4. Select Trouble Codes tab.

5.

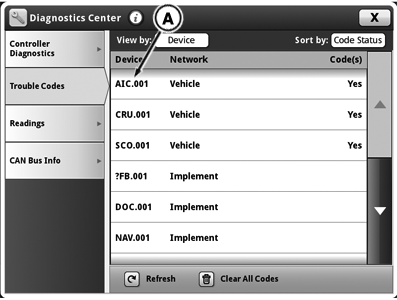

   RXA0133359-UN-26JUL13

   Trouble Codes Page

   Select control unit (A) desired.

---




6.

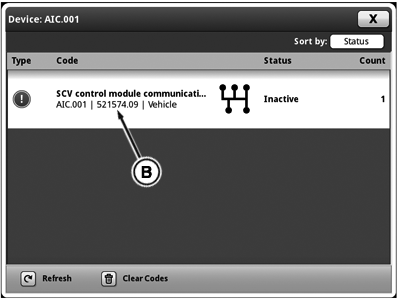

   RXA0133361-UN-26JUL13

   Select diagnostic code (B) for code display.

---
