Suspension Mount Clearance (Narrow Track)

1. Remove implements.

2. Dispose of chemicals in manner consistent with local regulations.

   Drain contents of spray tanks.
3. Park tractor on level surface. Stop tractor and remove key.

4.
   RXA0156203-UN-15DEC16

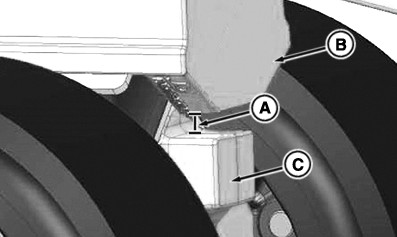

   Measure gap (A) between V-block vertical stop (B) and beam vertical stop (C) at front and rear on all four undercarriage units.

---

5.
   RXA0156204-UN-03OCT17

   Midrollers removed for illustration purposes.

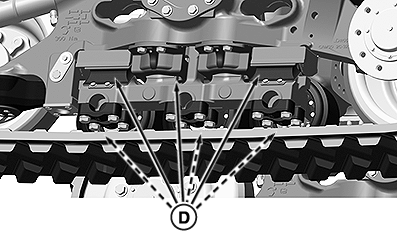

   If either measured gap on an undercarriage unit is less than 6 mm (0.25 in.), replace all six suspension mounts (D) on that undercarriage unit. See your John Deere dealer.

---
