Hinge Pins

Place tractor in PARK and remove key before working in hinge area.

RXA0147214
RXA0147214-UN-09FEB15

RXA0141970
RXA0141970-UN-02JUN14

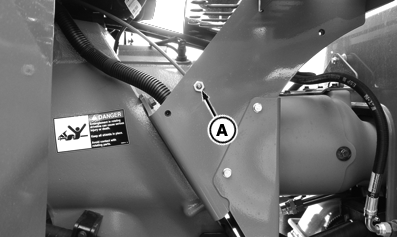

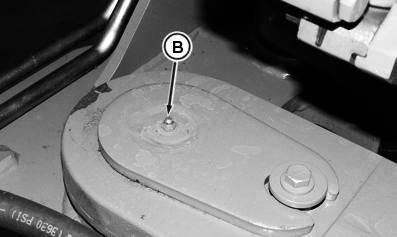

Lubricate upper (A) and lower hinge pins (B).

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section of this Operator’s Manual.

TS36762,0000352-19-20170713
