Extended Road Transport

Never exceed implement’s maximum transport speed. Avoid roading at high speeds with a new set of tracks and wheels, especially during first full season of operation.

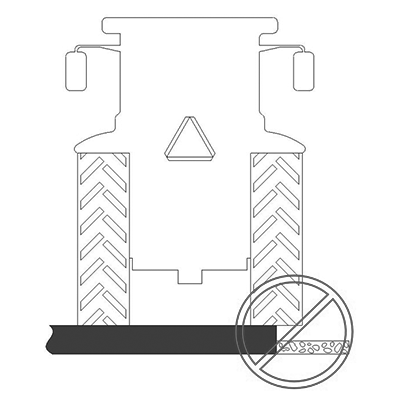

Driving on edge of road may cause severe damage to track components.

RXA0160970-UN-14SEP17

Reduce transport speed for long distances with implements at maximum allowable hitch 9072 kg (20000 lb) and ag vertical drawbar 5440 kg (12000 lb).

9RX Narrow Track Tractors Only

Damage to tracks and elastomeric coated wheels may result due to heat if operating at or near these load limits, especially at high ambient temperatures, for more than two hours. If continuous travel greater than two hours is required, it is recommended to reduce transport speed or long term track, mid-roller, or idler wheel heat damage may result.

• 75°F (24°C) outside air temperature. Reduce speed by 1 mph (1.6 kph) for every 15°F (8°C) warmer than 75°F (24°C).
• Failure to follow road transport recommendations could void warranty.

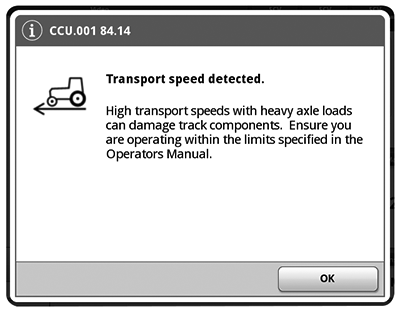

  Extended high transport speed will activate warning. If warning is visible, verify speed and axle weights match reference charts.


  RXA0161251-UN-01NOV17

Maximum Transport Speed by Weight 18 inch Track
Single Axle Weight1 kg (lb)	Transport Speed km/h (mph)
14500 (32000)	42 (26)
15000 (33000)	37 (23)
15400 (34000)	35 (22)
15900 (35000)	34 (21)
16300 (36000)	32 (20)
17200 (38000)	31 (19)
18100 (40000)	29 (18)
19500 (43000)	27 (17)
20900 (46000)	26 (16)
22200 (49000)	24 (15)
23600 (52000)	23 (14)
25400 (56000)	21 (13)
27200 (60000)	19 (12)

Maximum Transport Speed by Weight 24 inch Track
Single Axle Weight2 kg (lb)	Transport Speed km/h (mph)
16800 (37000)	42 (26)
18100 (40000)	40 (25)
19500 (43000)	38 (24)
20900 (46000)	37 (23)
22200 (49000)	35 (22)
23600 (52000)	34 (21)
24900 (55000)	32 (20)
27200 (60000)	31 (19)
