Transmission-Hydraulic Oil Level
Poor shift quality or transmission damage may occur
if incorrect oil is used, see Transmission and Hydraulic Oil in Other
Lubricants section of this Operator’s Manual.
RXA0141848-UN-02JUN14

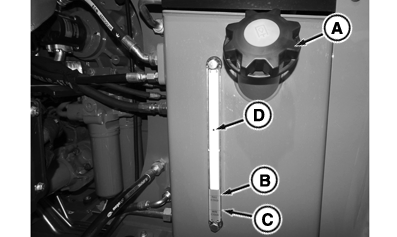

Transmission-Hydraulic Oil Sight Gauge
Do not operate tractor if oil level is at or below MIN COLD
mark (C) in sight gauge with engine off.
If topping off oil in hydraulic reservoir, use sight gauge marks
to estimate volume and add to transmission fill tube.
Hydraulic oil reservoir does not hold all system hydraulic oil
capacity. Transmission and front and rear axles hold additional system
oil. If possible, check oil level prior to first start of day. Ambient
temperature should be 7° C (45° F) or above.
For implements and applications requiring high volumes of oil
transfer (for example - large air seeders or pulling 3 scrapers),
hydraulic reservoir can be filled up to High Volume Takeout Oil Mark
(D). Additional capacity is 58.5 L (15.4 gal) above MIN COLD (C).
-
Check tractor and implement
for leaks daily, before start-up.
-
Park tractor on level
ground with implement fully lowered.
-
Place transmission shift
lever in PARK.
-
Start engine and set
engine speed set to 1200 rpm.
-
Run engine for five minutes.
-
Shut off engine and wait
five minutes for oil level to stabilize.
-
Contaminated or overheated oil may cause damage to
transmission-hydraulic system components. Oil which is:
- Milky or foamy may be contaminated with water. Change
oil immediately.
- Discolored or smells burned may have been overheated.
See your John Deere dealer.
Check hydraulic reservoir oil level using sight gauge
located on right-hand side of gudgeon area. Examine oil in sight gauge
for milky or foamy appearance.
As tractor and hydraulic system temperature increases,
oil level will rise in reservoir. Oil level in reservoir
fluctuates depending upon volume of oil exchanged with an attached
implement. If low oil level results in hydraulic pressure drop, a
STOP engine light will come on.
-
Open hydraulic reservoir
cap (A). Check for burned oil odor.
-
If reservoir oil level
is between FULL COLD (B) and MIN COLD (C) marks, tractor can be used
for normal operation. Volume difference between MIN COLD and FULL
COLD marks is about 11.4 L (3 gal).
-
If reservoir oil level
is below MIN COLD mark, add oil to hydraulic oil reservoir. Remove
hydraulic oil reservoir cap and add oil, see Transmission-Hydraulic
Oil in Service - Change section of this Operator’s Manual.
|
RX32825,000184B-19-20180412
|
|
