Replace Tail Light Bulb-Open Station

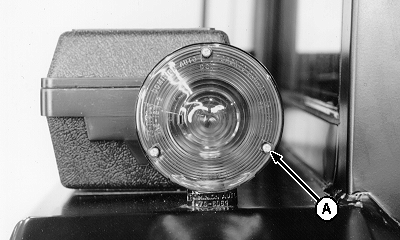

NOTE: On 5210 cab tractors (S.N. -120630), 5310 open station tractors (S.N. -131046), 5410 open station tractors (S.N. -141126), and 5510 open station tractors (S.N. -150807) use round tail lights with three cap screws.

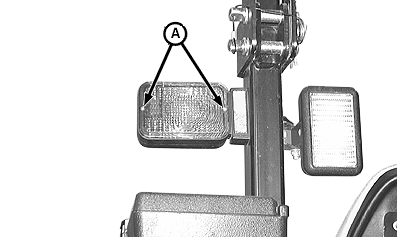

On 5210 open station tractors (S.N. 120631- ), 5310 open station tractors (S.N. 131047- ), 5410 open station tractors (S.N. 141127- ), and 5510 open station tractors (S.N. 150808- ) use rectangular tail lights with two cap screws.

1. Remove cap screws (A).

2. Remove tail light lens.

3. Push and twist to release bulb from socket.

4. Reverse this procedure to reassemble tail light.

A-Tail Light Cap Screws (3 used)

AG,OUO1032,1441 -19-10AUG99-1/1
