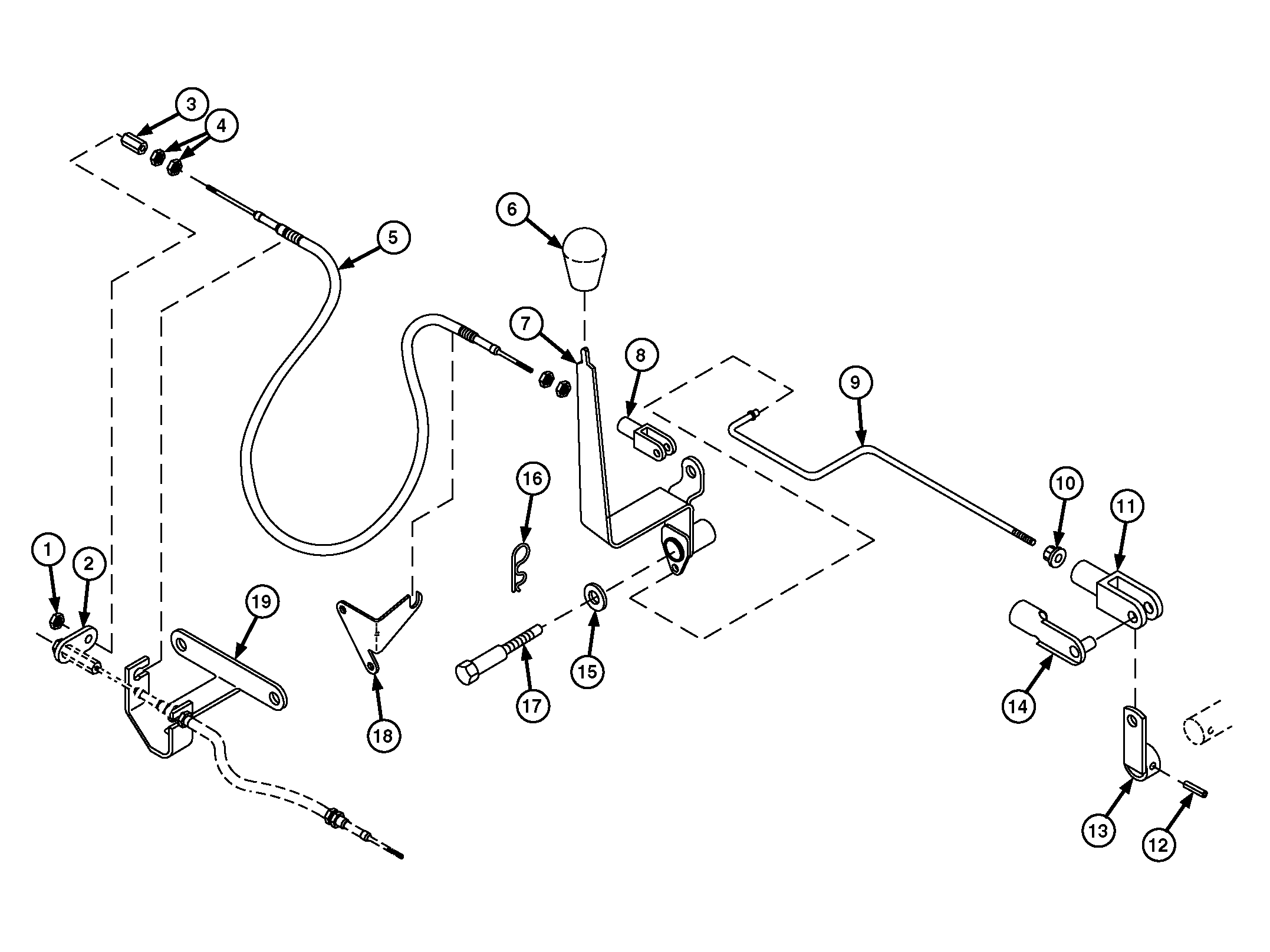

1-Nut
2-Plate
3-Adjustment Nut
4-Nut (4 used)
5-Control Cable

6-Knob
7-Lever
8-Yoke
9-Rod
10-Nut

11-Yoke
12-Pin
13-Arm
14-Spring Locking Pin
15-Washer

16-Retaining Clip
17-Bolt
18-Bracket
19-Control Bracket

2. Shift arm (13) to forward position.

3. Engine rpm should be 1850-1900 with lever (7) forward and no load.

4. Adjust yoke (11) so spring locking pin (14) aligns with hole in yoke and arm (13). Install spring locking pin and tighten nut (10).

5. Load engine to 1700 prm to obtain 540 PTO rpm in 540E position.

SyncShuttle is a trademark of Deere & Company

AG,OUO1032,1444 -19-11AUG99-1/1
