Ballasting Front End for Transport

causym CAUTION: Additional front ballast may be needed for transporting rear-mounted implements. When implement is raised, drive slowly over rough ground, regardless of how much ballast is used.

causym CAUTION: Weights are heavy. Use proper lifting equipment. Approximate weight of starter weights are: 49 kg (109 lb). Approximate weight of QUIK-TATCH ™ weights are 45 kg (99 lb).

Specification

Starter Weight (Ballast) -Weight 49 kg (109 lb) Each
QUIK-TATCH™ Weight (Ballast) -Weight 45 kg (99 lb) Each

Installing QUIK-TATCH ™ Weights: QUIK-TATCH™ weights can be installed on the front of the tractor.

5210 and 5310: One starter weight and up to 8 QUIK-TATCH ™ weights can be installed.

5410 and 5510: One starter weight and up to 10 QUIK-TATCH ™ weights can be installed.

1. Install weights in pairs, one on each side of center (A).

2. To hold weights in place, run retaining bolts (B) through holes from side-to-side. Tighten to specification.

Specification

Ballast Weights Retaining Bolts -Torque  230 N·m (170 lb-ft)

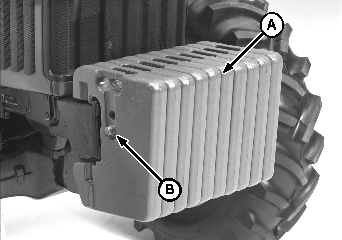

LV1747


A-Ballast Center
B-Ballast Retaining Bolts

QUIK-TATCH is a trademark of Deere & Company

LV,5010B,A -19-21MAY99-1/1
