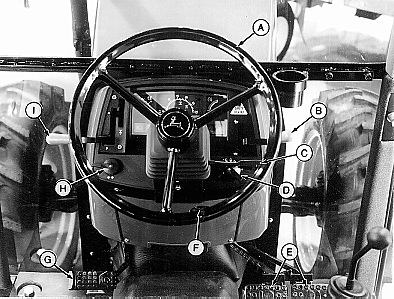

A-Steering Wheel B-Hand Throttle C-Steering Tilt Release Lever (5510 and Cab Tractors) D-Light Switch E-Brake Pedals F-Key Switch G-Clutch Pedal H-Turn Signal Switch I-Forward-Neutral-Reverse Lever (Hydraulic Reverser Transmission ONLY) J-Foot Throttle
LV,5010CI,A -19-03JUN97-1/2

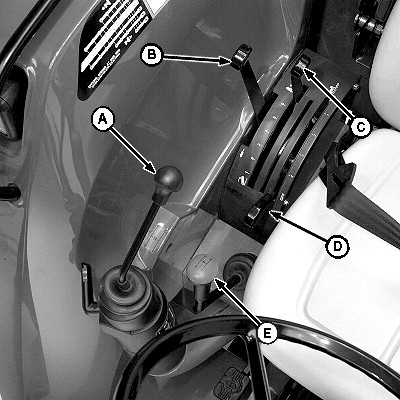

A-Selective Control Joystick (Standard with Dual SCVs) B-Selective Control Lever (Single or Triple SCV Option)
C-Rockshaft Position Control Lever D-Rockshaft Draft Control Lever

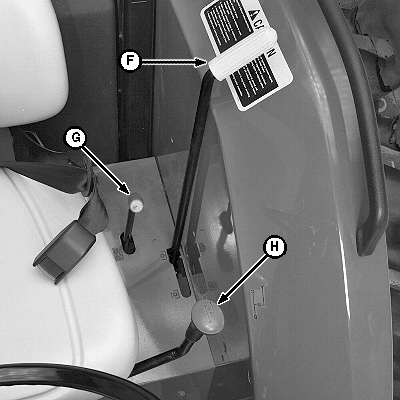

E-Gear Shift Lever F-PTO Clutch Lever G-Mechanical Front-Wheel Drive Shift Lever (Optional)
H-Range Shift Lever I-Rockshaft Rate-of-Drop Valve J-Differential Lock Pedal
NOTE: Cab tractor shown. All controls are the same on open station tractors.
LV,5010CI,A -19-03JUN97-2/2
