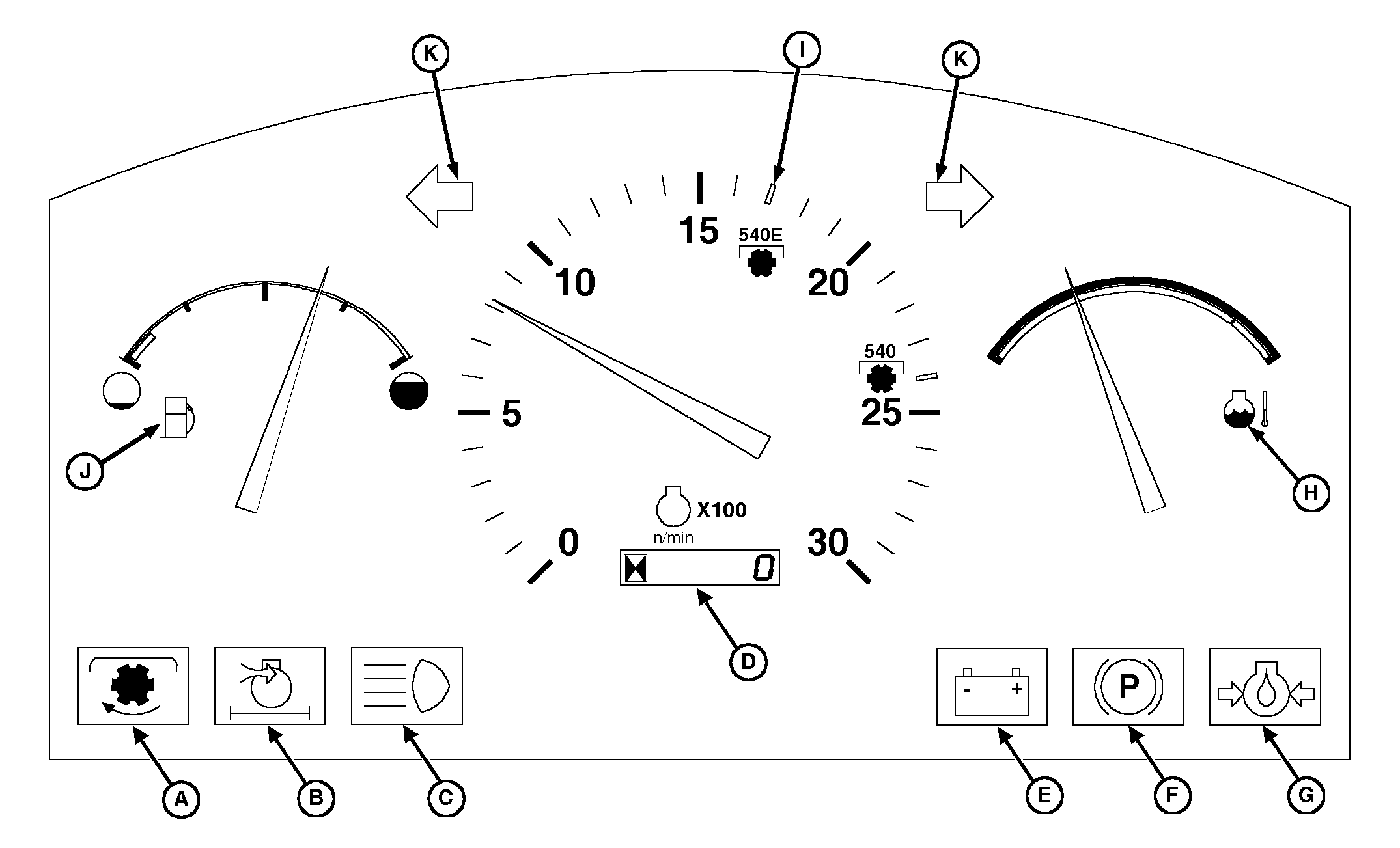

A-PTO Engaged Indicator
B-Air Restriction Indicator
C-High Beam Indicator
D-Hour Meter (LED Digital)

E-Charging System Indicator
F-Park Brake Indicator (See Important)
G-Engine Oil Pressure Indicator

H-Coolant Temperature Gauge
I-Tachometer (See Note)

J-Fuel Gauge
K-Turn Signal Direction Indicators

IMPORTANT: Park brake indicator (F) is not functional.

NOTE: 540E PTO is a factory installed option on SyncShuttle ™ transmissions only.

SyncShuttle is a trademark of Deere & Company.

LV,5010CI,C -19-29AUG97-1/1
