Operating Tractor PTO

NOTE: Engine will not start if PTO clutch lever is engaged.

540E PTO (B) is a factory installed option on SyncShuttle ™ transmissions only.

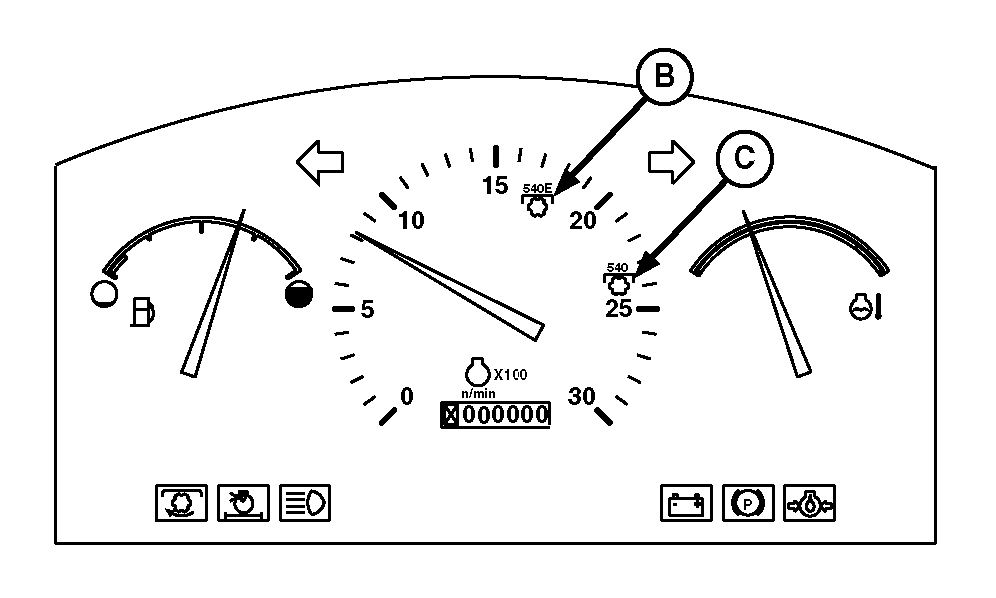

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until tachometer indicates PTO rated speed of 1700 rpm (B) for 540E operation or 2400 rpm (C) for standard 540 operation.

NOTE: Engine speed is mechanically limited to a maximum of 1700 rpm when in 540E position. 540E operation will not engage if engine speed is above 1700 rpm.


A-Hand Throttle Lever
B-540E Operation Speed
C-540 Operation Speed

LV1719
LV1743

SyncShuttle is a trademark of Deere & Company.

LV,5010DP,C -19-03JUN97-1/2

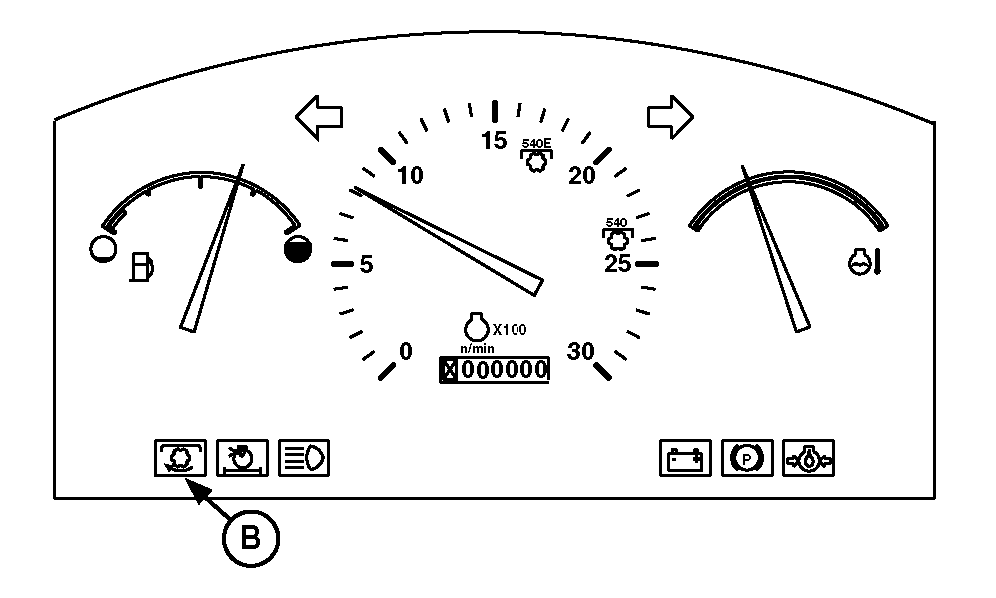

2. Move control lever (A) inward and forward to engage PTO. PTO indicator (B) will light when PTO is engaged.

IMPORTANT: A warning alarm will sound for a few seconds if you leave seat with PTO engaged.

causym CAUTION: Turn key off to stop engine and make sure all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.

3. Pull control lever back to disengage PTO.


A-PTO Control Lever
B-PTO Indicator

LV1745
LV1746
