Gear shift lever (A) provides three forward travel speeds and one reverse.

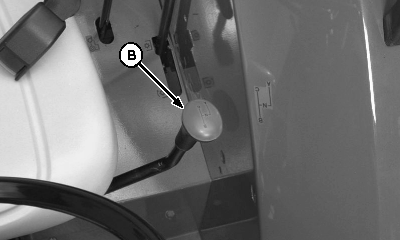

Shift lever (B) provides three speed ranges, A, B, and C.

Slow speed gearing (Creeper) is available as an option, providing for a fourth speed range. See Creeper Gear Operation in this section for further information.

Using range and gear shift levers in different combinations, nine forward speeds can be obtained. Reverse can be obtained in all speed ranges.

Gear shift must be in park or neutral for the engine to be started.

SyncShuttle is a trademark of Deere & Company.

LV,5010DT,B -19-04SEP97-1/1
