Stopping Tractor with PowrReverser™ Transmission

IMPORTANT: Tractor must be stopped before placing Forward-Neutral-Reverse lever in park position. Park pawl will not engage, and transmission may be damaged if tractor is moving.

1. Stop tractor using brakes.

PowrReverser is a trademark of Deere & Company.

LV,5010DT,K -19-03JUN97-1/4

causym CAUTION: Always place Forward-Neutral-Reverse lever in park position before dismounting. Leaving transmission in gear with engine stopped MAY NOT prevent tractor from moving.

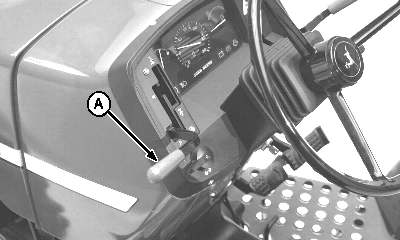

2. Move Forward-Neutral-Reverse (F-N-R) lever (A) through neutral gate and down into park position.


A-F-N-R Lever

LV1983

LV,5010DT,K -19-03JUN97-2/4

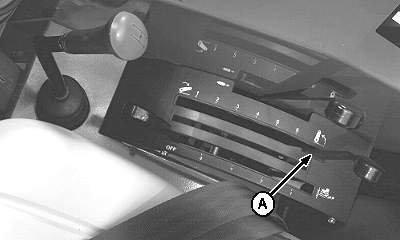

3. Lower all equipment to ground using rockshaft control lever (A).


A-Rockshaft Control Lever

LV1729

LV,5010DT,K -19-03JUN97-3/4

4. Pull hand throttle (A) back to slow idle position. Allow engine to idle for one to two minutes.

causym CAUTION: Remove key from key switch to prevent operation by untrained personnel.

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by over heating or lack of lubrication.

5. Turn key switch to the OFF position.


A-Hand Throttle

LV1728

LV,5010DT,K -19-03JUN97-4/4
