Using Turn Signals

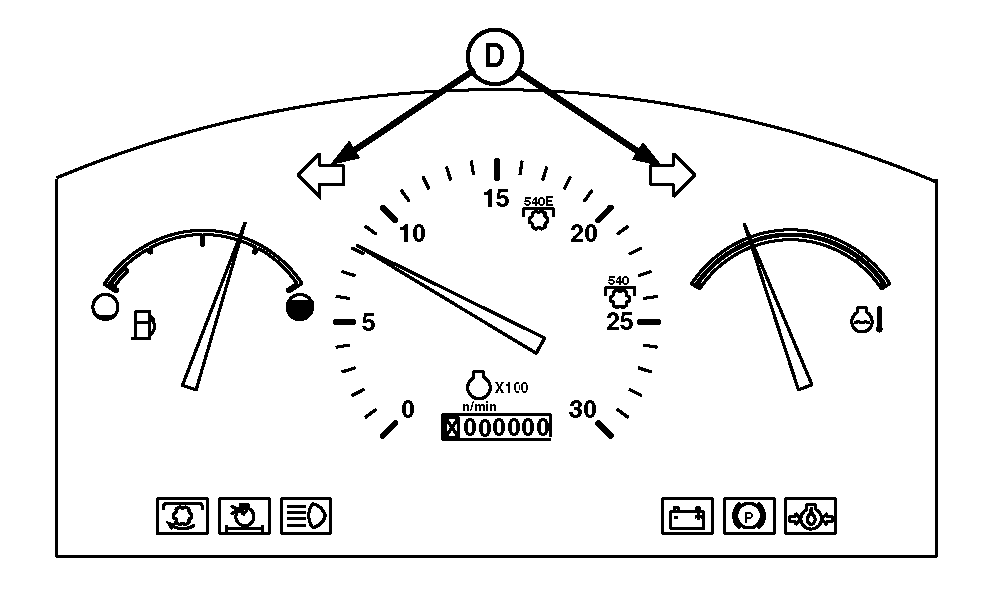

Move turn signal lever (A) down to indicate left-hand turn or up for right-hand turn. Indicator lights (D) will flash to signal turn direction.

Open Station: When lever is up, front and rear facing lights on right-hand side (B) will flash while left-hand lights (C) glow steady. Left-hand lights flash and right-hand lights glow steady when lever is down.

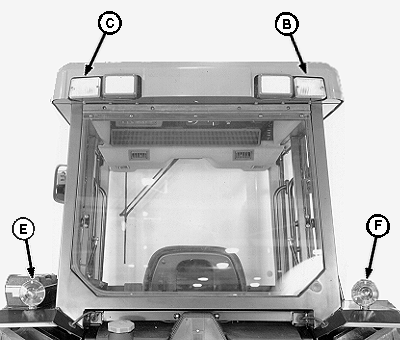

Cab: When lever is up, right-hand tail light (F) and front and rear facing lights (B) will flash while left-hand lights (C) glow steady. Left-hand tail light (E) and lights (C) flash and right-hand lights glow steady when lever is down.

NOTE: Be sure to manually return lever to center position after turning.

A-Turn Signal Lever
B-Right-Hand Lights
C-Left-Hand Lights
D-Dash Indicator Lights
E-Left-Hand Tail Light (Cab)
F-Right-Hand Tail Light (Cab)

LV,5010L,H -19-29AUG97-1/1
