Before Starting the Engine

CAUTION: Prevent asphyxiation. Engine exhaust fumes can cause sickness or death to you or someone else.

If you must operate engine in a building, be positive there is adequate ventilation. Either use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to bring enough outside air into the area.

2. CollarShift or SyncShuttle ™ transmissions:

Place gear shift lever (B) in Neutral or Park, range shift lever (C) in Neutral, and PTO lever (D) in OFF positions. Starter will not operate if gear shift lever and PTO lever are not in these positions.

PowrReverser ™ transmission:

Place Forward-Neutral-Reverse lever (A) in Neutral or Park, gear shift lever (B) in Neutral, range shift lever (C) in Neutral, and PTO lever (D) in OFF positions. Starter will not operate if Forward-Neutral-Reverse lever and PTO lever are not in these positions.

A-Forward-Neutral-Reverse Lever

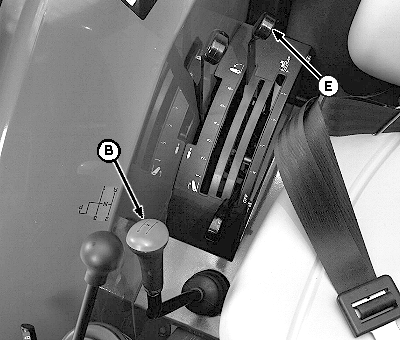

B-Gear Shift Lever

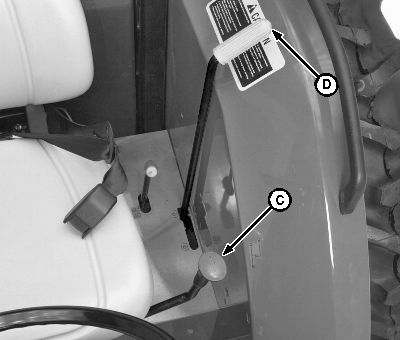

C-Range Shift Lever
D-PTO Control Lever

SyncShuttle is a trademark of Deere & Company.
PowrReverser is a trademark of Deere & Company.

LV,5010OE,A -19-29AUG97-1/2

4. Check indicator lights. Indicators should glow when key switch is turned to the "ON" position.

If any indicator does not function properly, see your John Deere dealer.

LV,5010OE,A -19-29AUG97-2/2
