Changing Engine Speeds

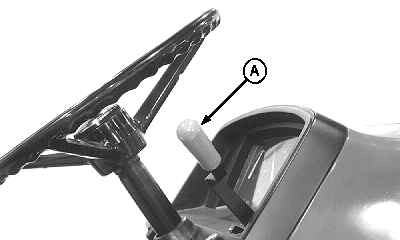

To increase speed, push hand throttle (A) forward.


A-Hand Throttle

LV1719

LV,5010OE,I -19-06JUN97-1/2

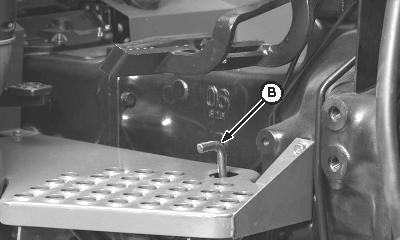

To temporarily increase engine speed above hand throttle setting, depress foot throttle (B).


B-Foot Throttle

LV1726

LV,5010OE,I -19-06JUN97-2/2
