Using Dome Light-Cab

Dome light (A) comes ON when either door is opened and turns off when both doors are closed.

To operate light with doors closed:

ON-Push on right or left edge of dome light (light pivots from side to side).

OFF-Push on opposite edge to pivot light until flush with headliner.

IMPORTANT: Before exiting cab, make sure dome light is in OFF position (flush with headliner). Failure to do so will cause battery to lose its charge.

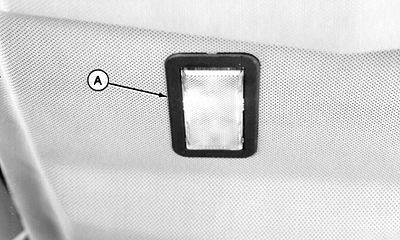

A-Dome Light

LV,5010OS,H -19-28MAY99-1/1
