Control Lever and Coupler Identification

The joystick has two basic directions of movement to control oil flow to the couplers.

Movement fore and aft (A) operates the upper left coupler (No. 1) receptacles (C).

Movement inward and outward (B) operates the upper right coupler (No. 2) receptacles (D).

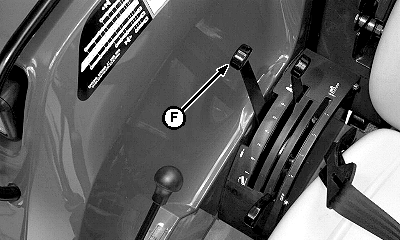

Tractors equipped with three SCVs have the control lever (F) located to the right of the rockshaft levers which operates the lower coupler (No. 3) receptacles (E).

A-Fore and Aft
B-Inward and Outward
C-No. 1 Receptacles
D-No. 2 Receptacles
E-No. 3 Receptacles
F-Control Lever

LV,5010RC,A -19-27MAY99-1/1
