Extending/Retracting Cylinder-No. 2 SCV

Moving lever (A) outward against spring pressure will retract a cylinder connected to the No. 2 SCV coupler receptacles. This cylinder is normally connected to the bucket cylinder and dumps the bucket.

Moving lever (A) inward against spring pressure will extend cylinders connected to the No. 2 couplers. This cylinder is normally connected to the bucket cylinder and rolls the bucket upward.

Moving lever (A) outward to last detent will provide faster loader bucket dump and reduces cavitation. Lever will return to neutral by valve spring.

A-Control Lever

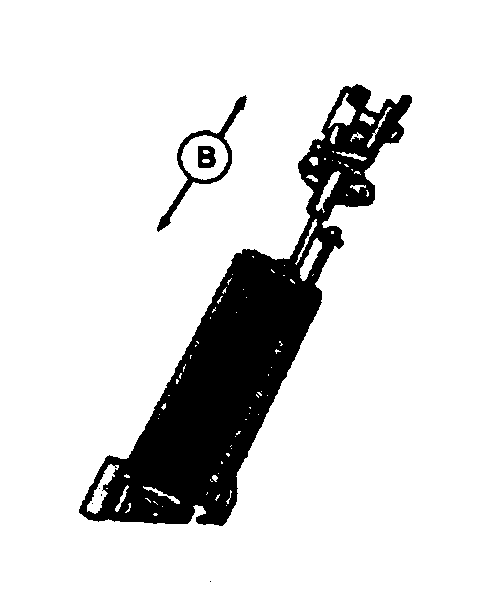

B-Extend Cylinder

LV,5010RC,C -19-11AUG99-1/1
