Extending/Retracting Cylinder-No. 1 and No. 3 SCV

Pull lever (A) slightly to the rear of neutral and hold it against spring pressure. This extends cylinder (B) (up arrow) connected to No. 1 couplers and in most cases raises implement. Lever returns to neutral when released.

Pull lever (A) rearward and hold it against spring pressure. This extends cylinder (B) (up arrow) connected to No. 3 couplers in most cases. Lever returns to neutral when released.

Push lever (A) slightly forward and hold it against spring pressure. This retracts cylinder (B) (the down arrow) connected to No. 1 SCV couplers and in most cases lowers implement. Lever returns to neutral when released.

Push lever (A) forward and hold it against spring pressure. This retracts cylinder (B) (down arrow) connected to No. 3 SCV couplers in most cases. Lever returns to neutral when released.

Push lever forward into detent to operate Float feature. Float operation allows cylinder to extend and retract freely, such as when an implement follows ground contour.

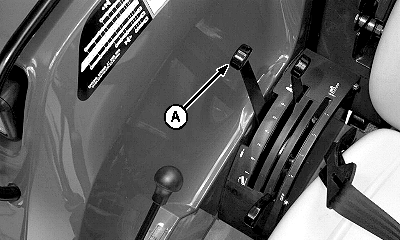

A-Control Levers
B-Extend Cylinder
