Check Engine Oil Level

1. Park tractor on level ground and pull out dipstick (A). Oil level should be between two marks on dipstick . DO NOT operate engine when oil level is below low mark on dipstick.

2. If level is low, add oil through oil filler hole (B) until even with upper mark. DO NOT over fill. Use seasonal viscosity grade oil. (See Fuels, Lubricants and Coolant section.)


A-Engine Oil Dipstick
B-Engine Oil Filler Hole

M46365

Dipstick-5210 and 5310

LV1714

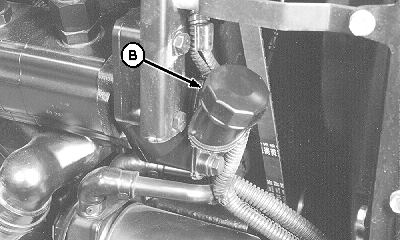

Filler Cap-5210 and 5310

LV1715

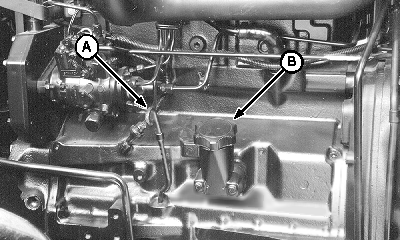

5410 and 5510

LV,5010S10,A -19-03JUN97-1/1
