Change Transmission-Hydraulic Oil and Filter

1. Lower rockshaft to remove trapped oil.

NOTE: The approximate transmission case oil capacity for CollarShift and SyncShuttle ™ Transmission is 38 L (10 gal). The approximate transmission case oil capacity for PowrReverser ™ Transmission is 42.5 L (11 gal).

2. Remove drain plug from transmission case (A) and drain out oil.

3. If equipped with MFWD axle, also remove drain plug (B) in drop housing.

4. Replace filter (C) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

5. Fill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section.)

Specification

CollarShift and SyncShuttle ™ Transmission -Capacity 38 L (10 gal)
PowrReverser ™ Transmission -Capacity 42.5 L (11 gal)

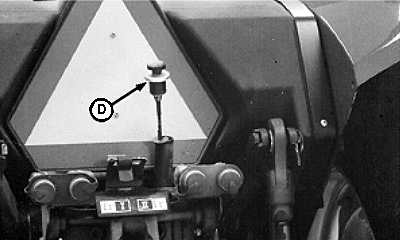

6. Check oil level at dipstick (D) after filling, and again after operating for five minutes.

M47210
LV1951


A-Transmission Case
B-Drain Plug
C-Filter
D-Dipstick

SyncShuttle is a trademark of Deere & Company.
PowrReverser is a trademark of Deere & Company.

LV,5010S12,A -19-10SEP97-1/1
