Clean Operator Enclosure (Cab) Air Filters

CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

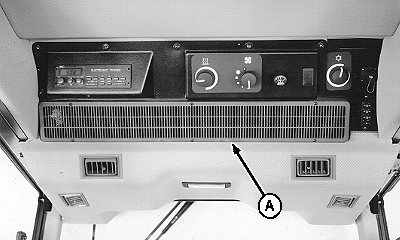

Remove six screws and recirculation vent and filter (A). Clean filter under running water and dry with compressed air. Cleaning filter may be required more often in dusty conditions.

NOTE: A fresh air intake filter is located above each cab door, under roof.

Loosen two screws (B) and slide retainer plates (C) away from filter retainer (D). Remove retainer and filter. Clean filters with compressed air. Inspect filters for damage, replace as necessary.

A-Recirculation Vent and Filter
B-Cap Screw (2 used)
C-Retainer Plate (2 used)
D-Fresh Air Intake Filter Retainer

LV,5010S250,G -19-04SEP97-1/1
