Replace Fuel Filter

Replace FuelGard ™ filter element (A) at least once a year.

1. Close fuel shut-off (B).

2. Remove retaining ring (C) and filter.

3. Install new filter with retaining ring hand tight.

4. Open fuel shut-off and bleed air from filter. (See Bleeding Fuel System in Service section).


A-FuelGard™ Fuel Filter Element
B-Fuel Shut-Off
C-Retaining Ring

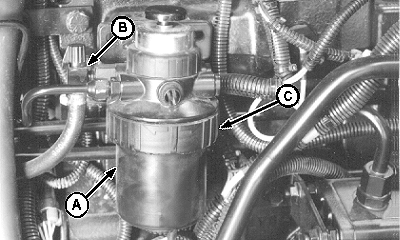

LV1773

5210 and 5310 Shown

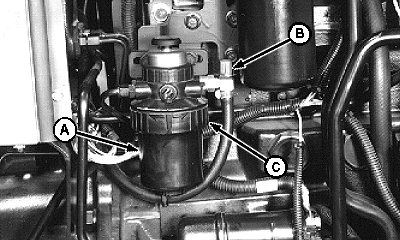

LV1774

5410 and 5510 Shown

FuelGard is a trademark of Deere & Company.

LV,5010S500,A -19-03JUN97-1/1
