Adjust 540E PTO Throttle Limiter SyncShuttle™-Open Station

With no load, engine rpm should be 1850-1900 with hand throttle lever forward and no load. Adjust T-bolt (A) under foot throttle and tighten jam nut (B).

Load engine to 1700 prm to obtain 540 PTO rpm in 540E position.

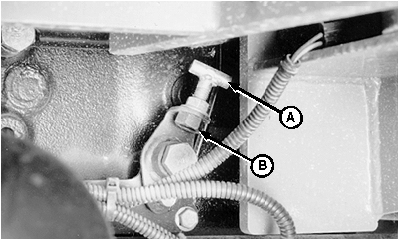

A-T-Bolt
B-Jam Nut

LV1564

Right-Hand Side-Under Foot Throttle
