Storing Tractor

IMPORTANT: Any time tractor will not be used for several months, use this procedure to minimize corrosion and deterioration. Use an AR41785 Engine Storage Kit and an extra 0.95 L (1 pt) of AR41870 Corrosion Inhibitor.

NOTE: 5210 and 5310 shown. Other models are similar.

1. Service air cleaner (A). (See Servicing Air Cleaner in Service section.)

2. If coolant has been in tractor for two years, flush cooling system (B). (See Flushing Cooling System in Service section.) Add 50 percent antifreeze water mixture. Test coolant for adequate cold weather protection.

3. Change engine oil (C) and filter (D). (See Change Engine Oil and Filter in Service-100 Hours section.)

4. Drain fuel and add back 4 L (1 gal) of fuel. Then add 0.4 L (12 oz) of corrosion inhibitor.

LV3035

5210 and 5310 Shown

M47145

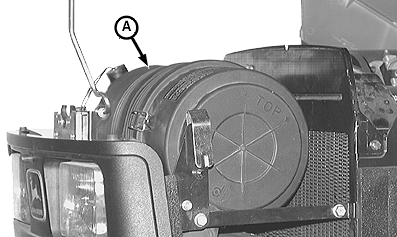

A-Air Cleaner
B-Cooling System
C-Engine Oil Drain Plug
D-Engine Oil Filter

LV,5010ST,C -19-01JUN99-1/4

5. Add 0.25 L (9 oz) of corrosion inhibitor to transmission-hydraulic system fill port (E).

6. Depress clutch and start engine. Run engine until it reaches operating temperature. Also raise and lower rockshaft several times. Shut off engine.


E-Transmission-Hydraulic System Fill Port

M47146

LV,5010ST,C -19-01JUN99-2/4

7. Add 0.5 L (16 oz) more inhibitor to fuel tank at filler/cap (A).

8. Add 0.5 L (16 oz) inhibitor to engine crankcase at filler/breather (B).

9. Remove boot (C) and disconnect fuel shut-off solenoid wiring lead (D). This will prevent engine from starting while cranking.

10. Remove air intake hose at manifold. Pour 0.1 L (3 oz) inhibitor into manifold and replace hose. Pull hand throttle back to slow idle position. Crank engine only a few revolutions.

11. Loosen alternator/fan belt and A/C compressor belt (cab) after they have cooled.

12. Remove and clean battery. Store in a cool, dry place. Keep it charged. 1

13. Tie or block clutch pedal in the disengaged position.

14. Coat exposed metal surfaces, such as adjustable front axles, if extended, with grease or a corrosion inhibitor.


A-Fuel Tank Filler/Cap
B-Crankcase Filler/Breather

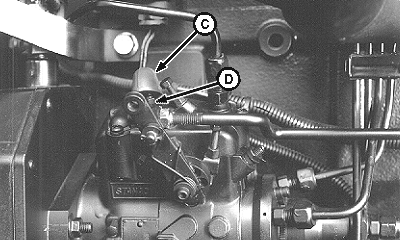

C-Boot
D-Fuel Shut-Off Solenoid Wiring Lead

M47147
LV1714
LV1923

1 Disconnect battery ground cable for short-term storage periods (20 to 90 days).

LV,5010ST,C -19-01JUN99-3/4

15. Use tape to seal air inlet hole (A), dust unloader valve (E), exhaust pipe, crankcase filler/breather (B), fuel cap, coolant recovery tank, and transmission-hydraulic system filler/cap (C).

16. Cover dash with opaque material to prevent gauges from fading.

17. Raise tires off ground. Protect them from heat and sunlight.

18. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

19. If tractor must be stored outside, cover it with a waterproof material.

20. Cab: Rotate A/C compressor pulley (D) several turns once a month to prevent seizure of compressor.

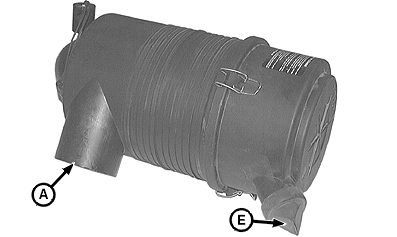

A-Air Cleaner Inlet Hole
B-Crankcase Filler/Breather
C-Transmission-Hydraulic System Filler/Cap
D-A/C Compressor Pulley (Cab)
E-Dust Unloader Valve

LV3040
LV1714
M46987
LV1505
