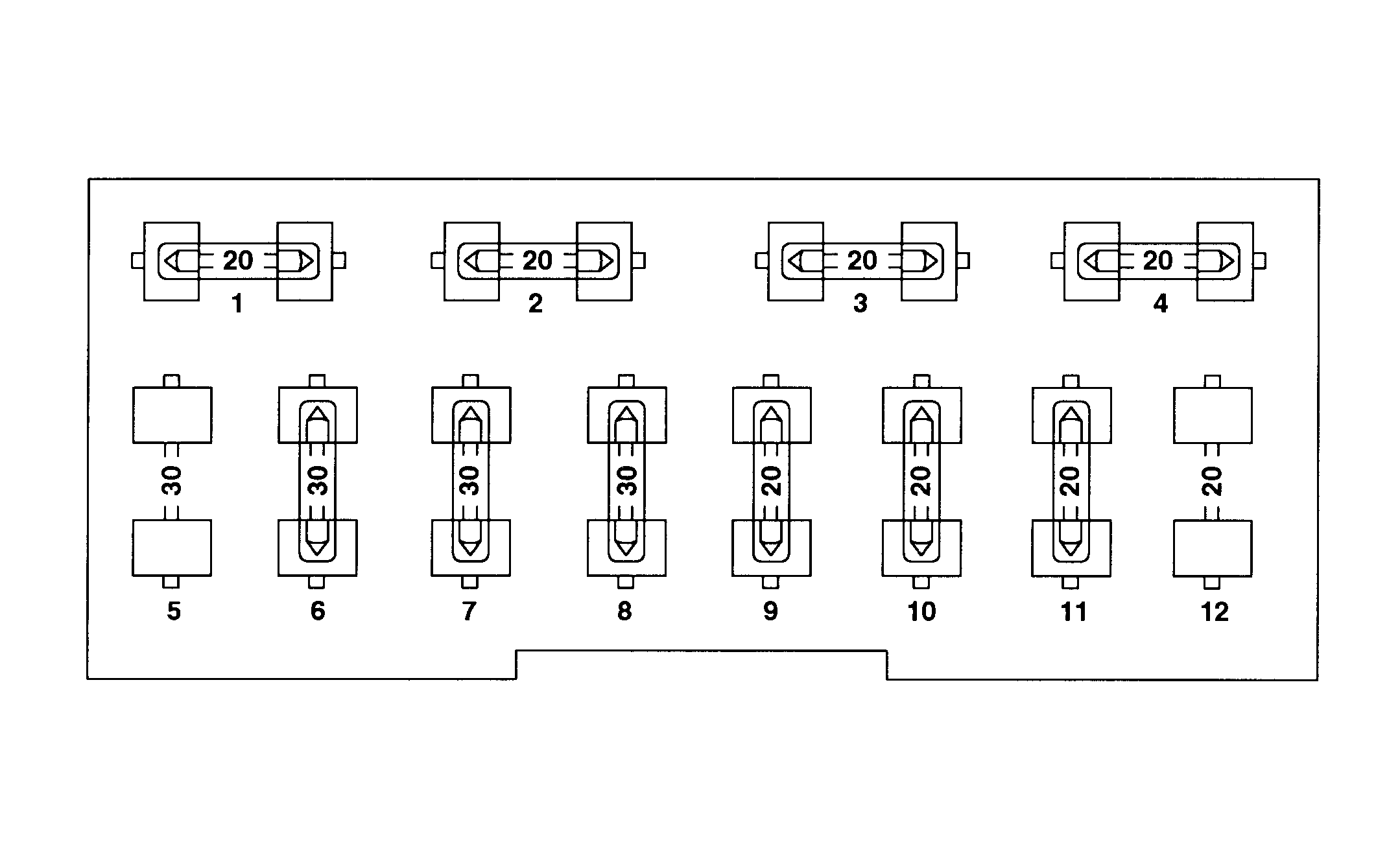

1-20 amp-Alternator, Instruments and Engine-Related Warning Indicators
2-20 amp-Fuel Shut-Off Solenoid
3-20 amp-Warning Lights and Indicator
4-20 amp-Fender Lights (5510) and Flood Light(s)
|
5-Open Station: 30 amp-Auxiliary Circuit ("Hot" all the time)
6-Cab: 30 amp-Dome Light, Wipers/Washer, Accessory Outlet (Terminal No. 2) and Radio ("Hot" terminal)
7-30 amp-Key Switch, Starting Circuit, PTO Warning Circuit, Manifold Heater Circuit
|
8-30 amp-Horn, Lights, Turn Signals
9-30 amp-Accessory Relay
10-20 amp-Tail Light(s)
11-20 amp-High-Beam Headlights and Indicator
12-20 amp-Low-Beam Headlights
|
13-Open Station: 20 amp-Auxiliary Circuit (Key Activated)
13-Cab: 20 amp-Accessory Outlet (Terminal No. 1) and Radio ("Key" Activate Terminal)
|
