Replace Tail Light Bulb-Cab

NOTE: On 5210 cab tractors (S.N. -120630), 5310 cab tractors (S.N. -131046), 5410 cab tractors (S.N. -141126), and 5510 cab tractors (S.N. -150807) use round tail lights with three cap screws.

On 5210 cab tractors (S.N. 120631- ), 5310 cab tractors (S.N. 131047- ), 5410 cab tractors (S.N. 141127- ), and 5510 cab tractors (S.N. 150808- ) use rectangular tail lights with four cap screws.

1. Remove cap screws (A).

2. Remove tail light lens.

3. Push and twist to release bulb from socket.

4. Reverse this procedure to reassemble tail light.

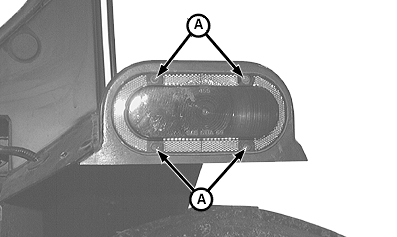

A-Tail Light Cap Screws

LV,5010S,AG -19-10AUG99-1/1
