Removing Side Screens

1. Raise the hood and secure the support rod.

2. Turn side screen latch levers (A).

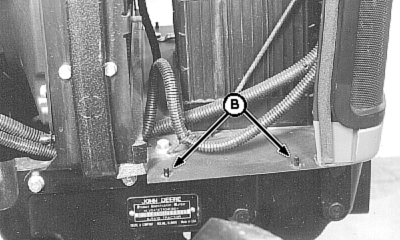

3. Tilt screen outward and lift from lower mounting pins (B).


A-Side Screen Latch Levers
B-Lower Mounting Pins

LV1764
LV1765

LV,5010S,E -19-29AUG97-1/1
