OMRE71736 C0: 5210, 5310, 5410 and 5510 Tractors, Block File: LV_5010S_L_19

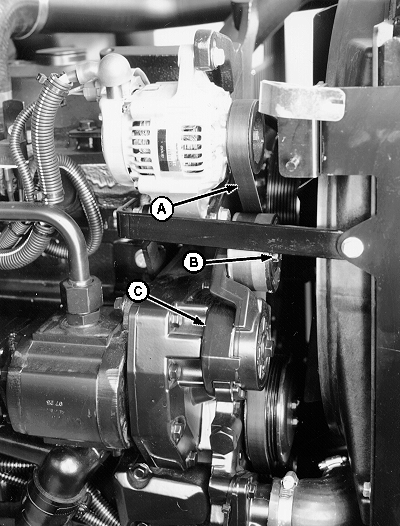

1. Using a 17 mm socket and breaker bar on bolt (B), pry tensioner (C) counterclockwise away from belt (A).

2. Holding tensioner in retracted position, slip belt off over fan.

3. Install new belt in reverse order of removal.

A-Fan/Alternator/AC Compressor Belt
B-Bolt
C-Tensioner

LV,5010S,L -19-29AUG97-1/1
