Fuel System Components


A-FuelGard™ Fuel Filter
B-Fuel Shut-off Valve
C-Priming Pump
D-Bleed Screw
E-Electric Fuel Shut-off
F-Fuel Injection Lines
G-Injection Pump

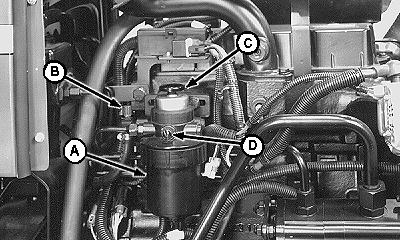

LV1769

5210 and 5310 Shown

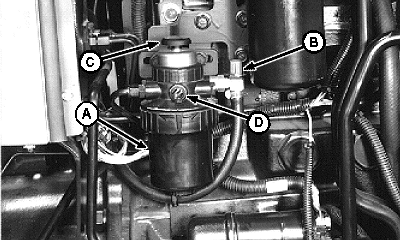

LV1770

5410 and 5510 Shown

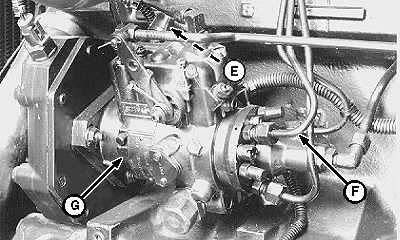

LV1771

5210 and 5310 Shown

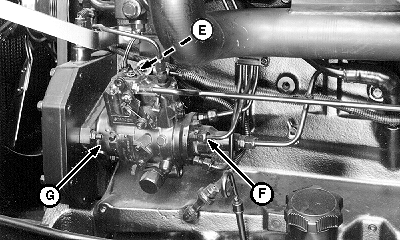

LV1772

5410 and 5510 Shown

FuelGard is a trademark of Deere & Company.

LV,5010S,M -19-03JUN97-1/1
