Battery Access-Open Station Machines

Battery is located in front of the radiator.

To gain access:

1. Raise the hood.

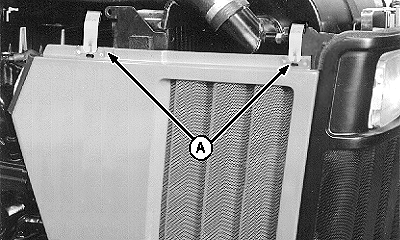

2. Rotate latches (A), and remove side screens from pegs. (See Removing Side Screens in this section.)


A-Latches

LV1764

LV,5010S,T -19-29AUG97-1/1
