Battery Access-Cab Machines

Battery is located under cab on left-hand side.

To gain access:

1. Remove one screw in floor mat next to clutch pedal.

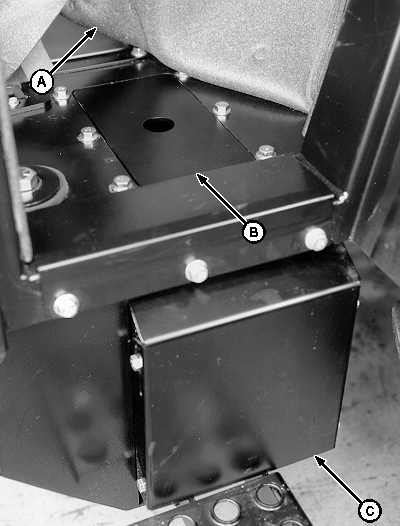

2. Pull back floor mat (A) and remove plate (B).

3. Remove four cap screws and side cover (C).


A-Floor Mat
B-Floor Plate
C-Side Cover

LV1986

LV,5010S,U -19-29AUG97-1/1
