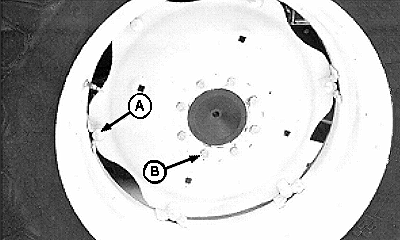

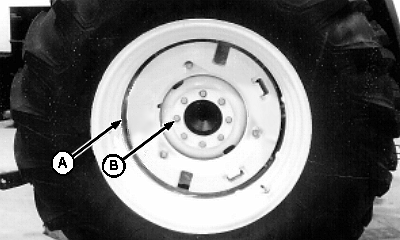

Rear Axle Rim-to-Disk (Steel Disk)
-Torque
|
245 N·m (180 lb-ft)
|
|
Rear Axle Disk-to-Flange (Steel Disk)
-Torque
|
175 N·m (130 lb-ft)
|
|
Rear Axle Rim-to-Disk (Cast Disk)
-Torque
|
215 N·m (160 lb-ft)
|
|
Rear Axle Disk-to-Flange (Cast Disk)
-Torque
|
225 N·m (165 lb-ft)
|
|
Rear Axle Rim-to-Disk (Hi-Crop Disk)
-Torque
|
235-250 N·m (175-185 lb-ft)
|
|
Rear Axle Disk-to-Flange (Hi-Crop Disk)
-Torque
|
200 ± 40 N·m (148 ± 30 lb-ft)
|
