Tighten Bolts-MFWD Axle

Tighten bolts in the following locations to specifications:

Specification

MFWD Axle Rim-to-Disk Bolts -Torque 245 N·m (180 lb-ft)
MFWD Axle Disk-to-Flange Bolts -Torque 300 N·m (220 lb-ft)

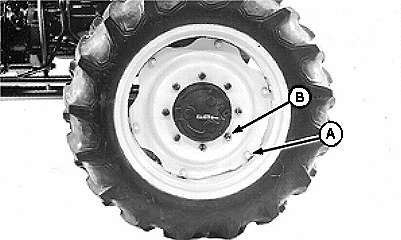

A-Rim-to-Disk Bolts
B-Disk-to-Flange Bolts

LV1975

LV,5010WT,H -19-29AUG97-1/1
