Replace Headlight Bulb

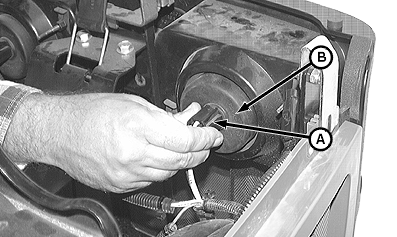

1. Remove headlight connector (A).

2. Remove dust boot (B).


A-Headlight Connector
B-Dust Boot

LV3030

LV,5400NSV,A14A -19-10AUG99-1/2

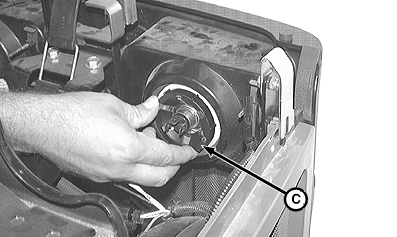

3. Twist collar (C).

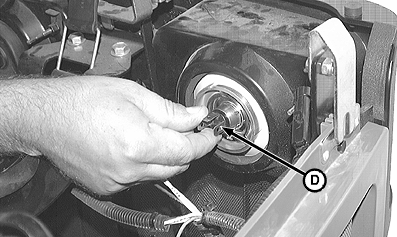

4. Remove bulb (D).

5. Install bulb, collar, seal and connector in reverse order.


C-Collar
D-Bulb

LV3031
LV3032

LV,5400NSV,A14A -19-10AUG99-2/2
