Selecting Seat Position-Optional Seat

NOTE: Seat design is optional on tractors with serial numbers listed below:

• 5210 (S.N. 224002- )

• 5310 (S.N. 233376- )

• 5410 (S.N. 243604- )

• 5510 (S.N. 251936- )

There are three seat adjustments available:

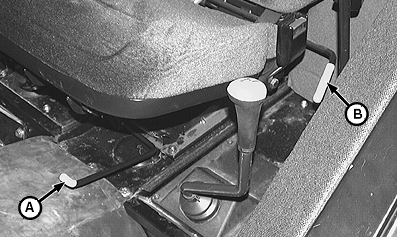

Move lever (A) and slide seat closer to or away from dash panel and controls.

To lower seat: Pull up on lever (B), to release ratchet, and sit on seat to lower seat to its lowest position.

To raise seat: Raise up off seat and lift up on bottom front of seat cushion until desired height setting is obtained.

A-Seat Adjustment Lever-Fore or Aft
B-Seat Adjustment Lever-Lower or Raise

MX,CTIP,DA3 -19-18FEB00-1/1
