Connecting Single-Acting Cylinder

NOTE: SCVs No. 1 and No. 3 have "Float" positions.

In order for lever to work properly, a single-acting cylinder should be connected only to SCV outlet No. 1 (A) or No. 3 (C), if equipped.

IMPORTANT: Volume of oil required to extend cylinder must not lower transmission-hydraulic oil level below end of dipstick. Check oil level with cylinder fully extended.

Push SCV No. 1 control lever (B) full forward to use "float" position to lower cylinder.

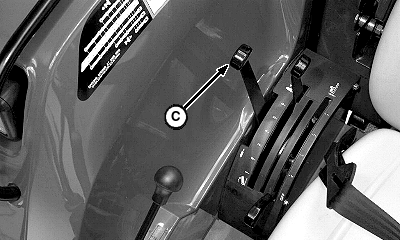

If equipped with SCV No. 3, push control lever (C) full forward to use "float" feature.

"Float" position allows a cylinder to extend and retract freely and uses no engine power.

A-SCV Outlet No. 1
B-SCV No. 1 Control Lever
C-SCV No. 3 Control Lever-If Equipped

MX,RHIP,FA2 -19-09AUG99-1/1
